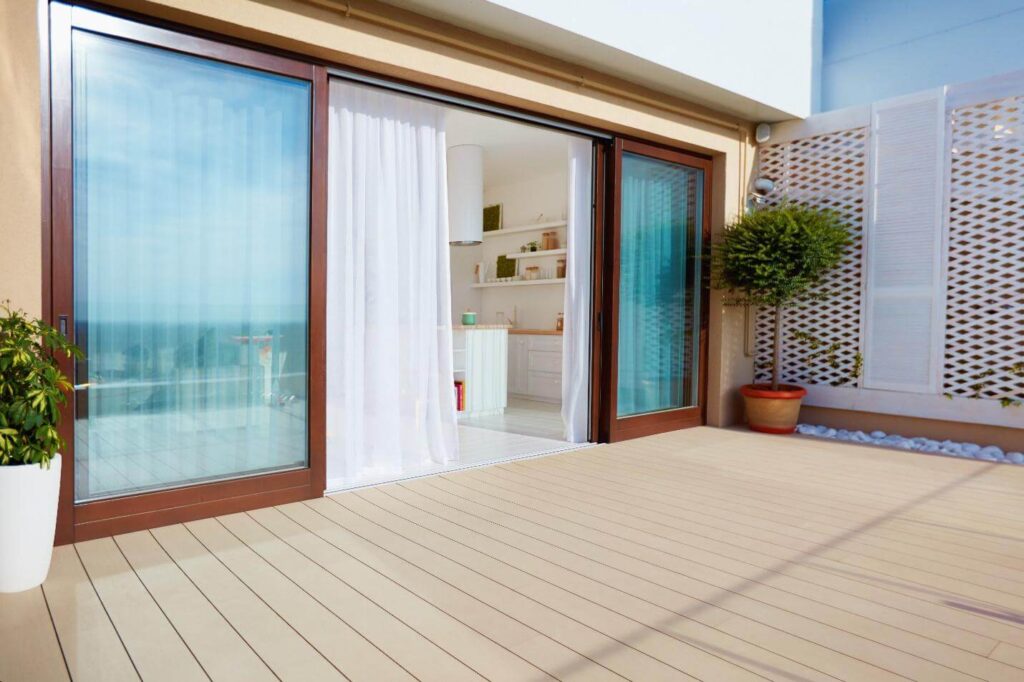

Patio Door Glass Replacement – A DIY Guide!

When Do You Need To Replace Patio Door Glass?

Although cracks and shattered glass is a quite evident sign that your patio door glass needs replacement, there are some other symptoms that indicate a patio door glass replacement. Let’s explore some of the indications for patio door glass replacement.

• If you notice a foggy appearance or moisture collection in the glass panes, it’s a sign that the patio door glass needs replacement.
• When it becomes challenging for you to open or close the patio doors, it indicates that your door slider needs to be repaired or replaced.  A faulty slider would eventually lead to the appearance of cracks in the glass panel. It may also result in glass panel shattering.
• Consider repairing the door if you notice a space between the frames of the patio doors.
• If you feel a draft coming through the patio glass door when you stand close to it, it is another sign that your patio door needs replacement.
• The accumulation of dirt and grime buildup is also a sign that the patio glass door is damaged.  The water leaks during the downpour are an indication that your patio glass door requires attention.

DIY Patio Door Glass Replacement

Patio glass doors are a remarkable addition to the house structure. However, in case of damage to the glass panel, they need to be repaired.  Fixing a broken or cracked patio door glass might come off as a fairly difficult task. Though you can do it on your own. Some assistance and the right set of instructions are all that you need. We will cover the DIY patio door glass replacement method here.

Things You’ll Need

The list of the things you will need for the replacement project is as follows.

• Screwdriver
• Putty knife
• Work gloves
• Safety goggles
• Work shoes
• Replacement glass pane
• Clear silicone caulk

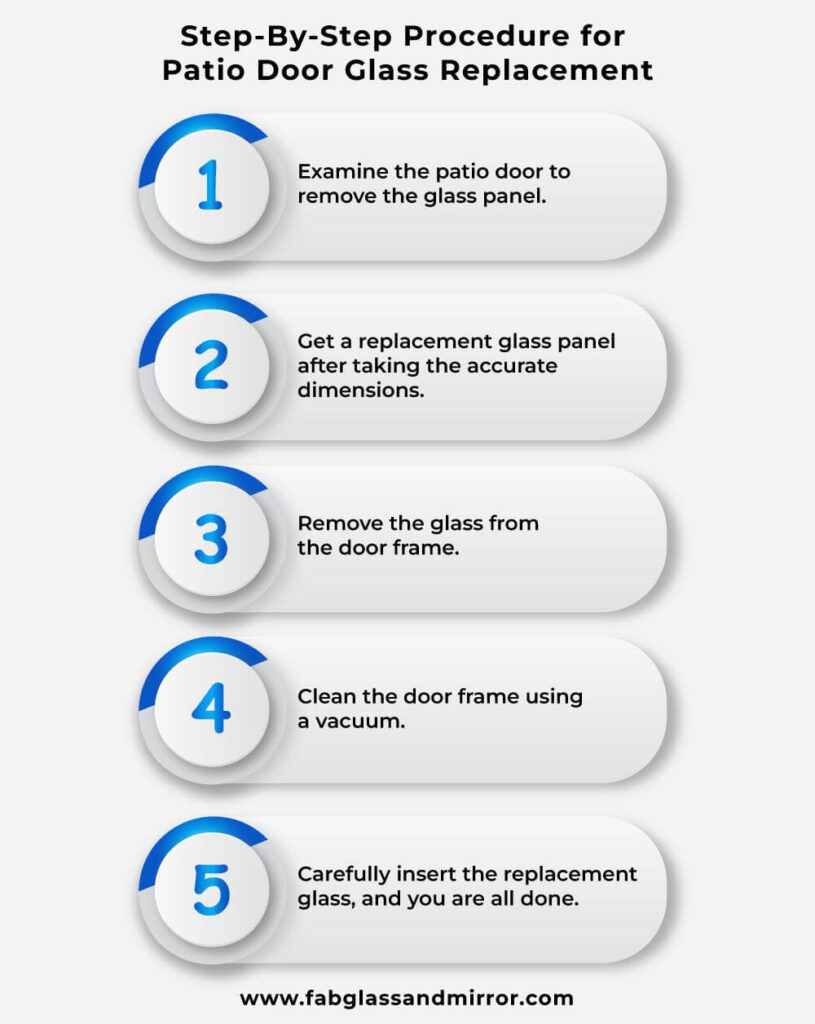

Step By Step Procedure

It’s time to replace the drafty patio door with a new one. The right installation method would ensure durability and better service life. Here is a step-by-step method for the DIY glass replacement process.

• Prep For The Glass Replacement

In order to remove the glass from the door frame, you need to examine the door. If the glass pane is fixed in the inside trim lines with a glazing bead, you only need to apply some gentle pressure to take the glass panel out of the door frame. However, if the glass panel is fixed directly into the door frame, you will need some professional assistance to safely remove the glass pane from the frame. It may require unscrewing the door frame and then accessing the glass panel.

• Get The Replacement Glass Panel

In order to replace the glass pane, you would require a replacement glass panel just according to the size of your patio door. For this purpose, take measurements of the door height, length, and width. Double-check every measured figure for accuracy. You can get a pre-cut glass pane from a reputable glass company or place an order for a custom-cut glass door panel.

• Remove The Glass Panel From The Frame

In order to remove the glass panel from the frame, examine the style and condition of your glass door pane. See if you can reach the glass completely without taking the door off.  In most cases, glass replacement doesn’t require removing the complete door.

So considering this scenario, find the glazing bead that is used to fix the glass panel in the door frame. The glazing bead and the sash are joined by a visible seam. Take a putty knife and insert it in the gap between the two side glazing beads and the sash. Separate the bead from the trim by gently pressing the knife. Remove the glazing when it becomes loose enough to be pulled away by hand. Remove the caulking. If there are any screws, use a screwdriver to remove them. Apply the same method to remove the glazing bead from the sides and top sash. When the glazing bead is out from all four sides, get help from a friend to take the glass pane out.

• Clean The Door Frame

When the glass pane is out, inspect the door frame for any dust, grime, or grit. Clean the door frame and use the vacuum to remove dust from the corners and nooks.

• Insert The Replacement Glass

Now take the replacement glass with the help of a friend and align it with the door frame. Apply caulk along the door frame and fit the replacement glass in the frame. Hold the glass pane in place for some time for the caulk to grip it in place. Leave the caulk to dry for at least 24 hours. Don’t use the door for 24 hours to avoid any damage to the glass panel.  In the case of glazing beads, reinstall the beads along the door frame and then install the glass panel in the glazing bead.

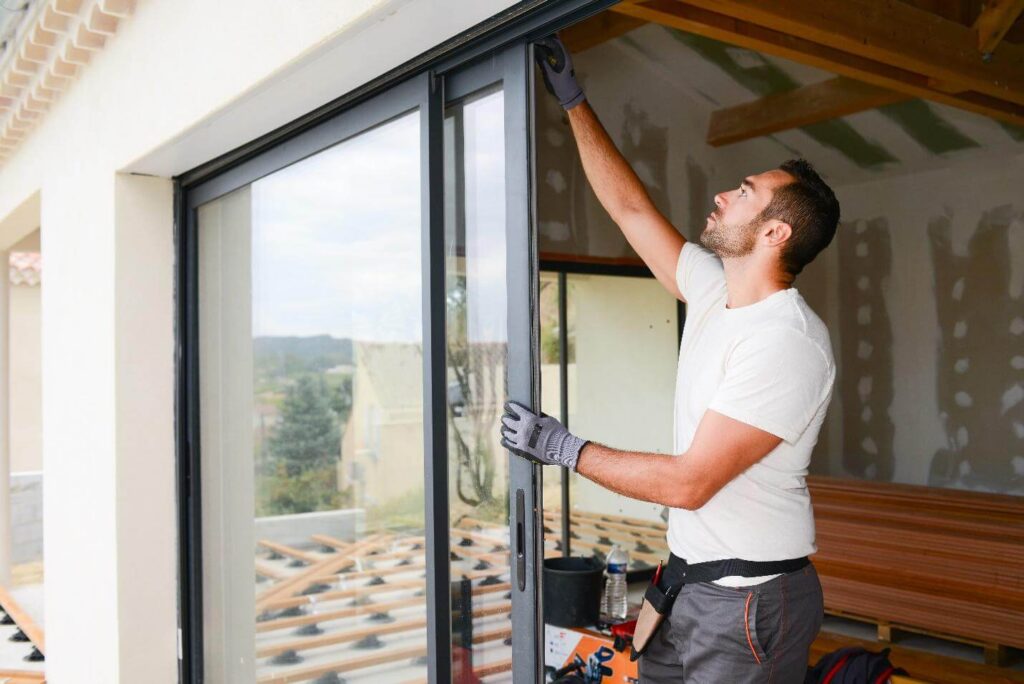

DIY Glass Replacement vs Professional Installation – Which One is Better?
