What Thickness of Plexiglass Do You Need? (1/8″ to 3/4″ Guide)

Whether you are replacing a window, constructing a display case, putting up barriers, or doing a DIY project, choosing the right thickness of the plexiglass is important since you want it strong without unnecessary cost or bulk.

Fab Glass and Mirror plunges into the three most prevalent thicknesses, 1/8-inch to 3/4-inch, so that you can know how to use them in the best way. Size and density of plexiglass sheets, along with strength, clarity, and weight will also be discussed..

Understanding Plexiglass by Thickness

Plexiglass, also known as acrylic glass or acrylic sheets, comes in a range of thicknesses, from ultra-thin 1/16″ to heavy-duty 2″ or more. But for most practical and consumer-based applications, three thicknesses are the most commonly used:

• 1/8″ (0.125 inches or 3mm)
• 1/4″ (0.25 inches or 6mm)
•  3/16”, 3/8”, 1/2″, 3/4″ (0.98 inches or 5mm)

Let’s explore each in more detail to find out which one fits your specific needs.

1/8″ Plexiglass Sheets – Lightweight and Budget-Friendly

1/8-inch plexiglass is the most popular choice for low-stress applications. It’s lightweight, easy to cut, and offers moderate strength.

Best Uses

• Picture frames and art protection
• Indoor window panes
• Lightweight signage
• DIY shelving covers
• Craft projects

Advantages

• Easy to drill, laser-cut, and fabricate
• Transparent and optical-grade clarity
• Cost-effective for large sheets
• Available in clear, colored, and frosted plexiglass options

Limitations

• Not ideal for structural use
• Can flex or crack under load or impact
• May not meet safety standards for protective barriers or exterior windows

Common Sizes Available

• 24″ x 48″
• 36″ x 72″
• Custom cut-to-size sheets

1/4″ Plexiglass Sheets – Durable for Mid-Range Applications

Overview

1/4-inch plexiglass offers greater strength and rigidity than 1/8″, making it suitable for both indoor and outdoor applications.

Best Uses

• Storm window inserts
• Machine guards
• Display cases
• Shower doors
• Tabletop covers

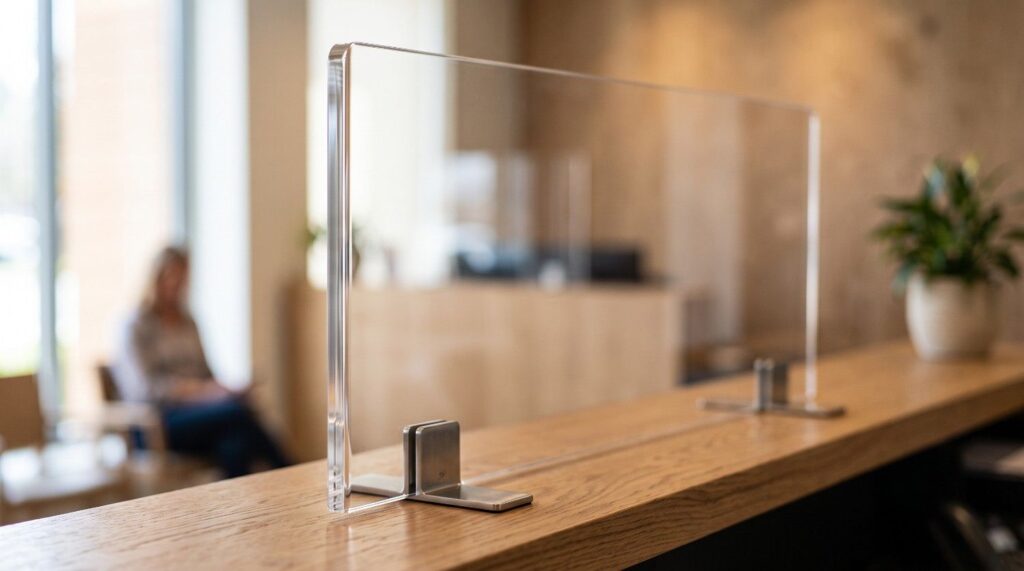

• Protective sneeze guards (commercial use)

Advantages

• Can withstand higher impact and pressure
• Suitable for structural and load-bearing roles
• Maintains excellent clarity and UV resistance
• Thicker variants offer sound insulation properties

Limitations

• Slightly heavier and costlier than 1/8″
• May require stronger mounting or framing

Common Sizes Available

• 48″ x 96″
• 60″ x 120″
• Custom plexiglass sizes available upon request

3/4″ Plexiglass Sheets – Extreme Durability and Industrial Reliability

3/4-inch plexiglass is designed for demanding industrial, commercial, and high-security settings. It perfectly bridges the gap between heavy-duty architectural panels and ultra-premium 1-inch structural blocks.

Best Uses

• Large commercial aquariums and feature water tanks
• Bank teller and cash-wrap security glazing
• Heavy-duty industrial machinery guards
• High-end museum artifact pedestals
• Transparent pedestrian walkway and flooring inserts

Advantages

• Massive impact resistance capable of withstanding severe physical force
• Completely immune to bowing, flexing, or warping under pressure
• Excellent structural load-bearing capacity

Limitations

• Highly premium pricing and significantly heavy weight profile
• Requires specialized material handling and industrial cutting equipment (like CNC routers or waterjet cutting) to prevent edge melting during fabrication

Common Sizes Available

• 48″ x 96″
• 60″ x 120″
• Custom plexiglass sizes available upon request

1/2″ Plexiglass Sheets – Semi-Structural and Architectural Strength

At half an inch thick, plexiglass moves firmly into heavy-duty architectural territory. It is incredibly robust, virtually impossible to bend by hand, and acts as an excellent shatterproof substitute for heavy tempered glass in high-traffic environments.

Best Uses

• Frameless office partitions and dividers
• Heavy-duty staircase balustrades and railings
• Hockey rink dasher boards and sports barriers
• Heavy commercial display stands and pedestals
• Industrial machinery safety enclosures

Advantages

• Extreme durability and high-impact resistance
• Offers excellent sound dampening and acoustic insulation qualities
• Retains flawless optical clarity despite its thick profile

Limitations

• Very heavy material that requires heavy-duty mounting hardware or reinforced tracking systems
• Cannot be scored and snapped; requires precision power tools or industrial CNC machinery to fabricate

Common Sizes Available

• 48″ x 96″
• 60″ x 120″
• Custom cut-to-size sheets

3/16″ Plexiglass Sheets – Balanced Strength and Versatility

Sitting right between 1/8″ and 1/4″, 3/16-inch plexiglass is the ultimate intermediate solution. It offers noticeably more rigidity than 1/8″ without the extra weight and cost of stepping all the way up to a 1/4″ sheet.

Best Uses

• Heavy-duty picture and poster frames
• Small tabletop protective covers
• Cabinet door glass inserts
• Secondary window glazing for smaller window panes
• Lightweight desktop partitions

Advantages

• Noticeably better warp and flex resistance than 1/8″
• Lightweight enough to fit into standard framing and mounting hardware
• Easy to cut and drill using basic DIY tools

Limitations

• Will still bow if used over large, unsupported spans (typically over 24 inches)
• Not thick enough for security barriers or load-bearing shelves

Common Sizes Available

• 24″ x 48″
• 36″ x 60″
• Custom cut-to-size sheets

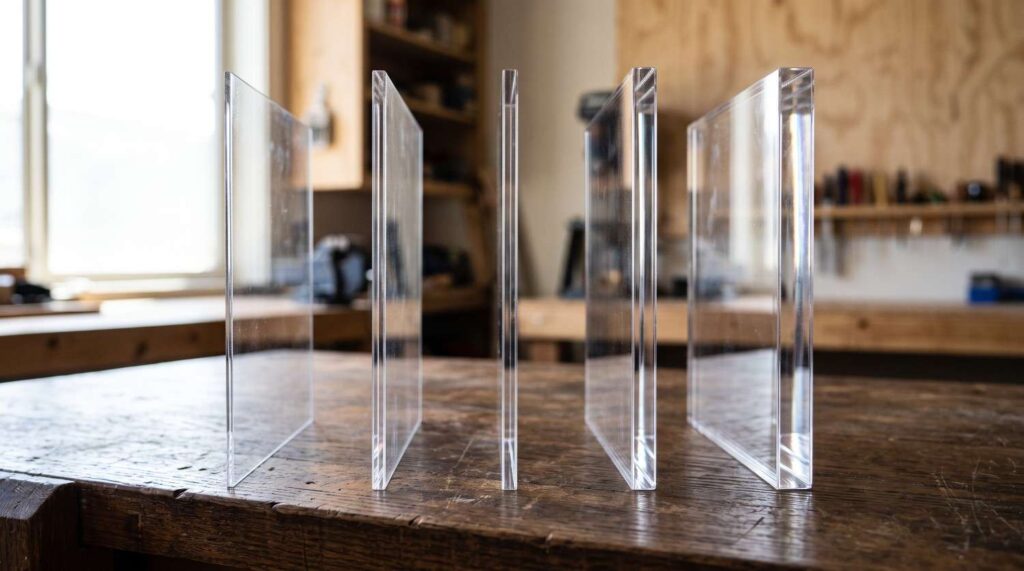

Plexiglass Thickness Comparison Chart

Thickness	Metric (mm)	Weight (lbs/sq.ft)	Best For
1/8″	3 mm	0.65 lbs	Frames, signs, covers
3/16″	5 mm	0.98 lbs	Display cases, shelving, machine guards
1/4″	6 mm	1.3 lbs	Windows, barriers, tabletops
1/2″	12 mm	2.6 lbs	Furniture, partitions, structural glazing
3/4″	19 mm	3.9 lbs	Heavy-duty displays, aquariums, architectural applications

All weight values are approximate and may vary by manufacturer or material type (cast vs. extruded acrylic).

Factors to Consider When Choosing Plexiglass Thickness

1. Size of the Panel

The larger the panel, the thicker the plexiglass needs to be to prevent bowing or bending. For example:

• A 12″ x 12″ piece may be fine at 1/8″
• A 36″ x 48″ panel may require at least 1/4″ or thicker

How Thickness Changes Your DIY Tool Requirements

Before you select your thickness, make sure you have the right tools to cut and fabricate it. The thicker the acrylic, the more specialized the tools required:

• For 1/16″ to 1/8″: You do not need a power saw. You can use the “Score and Snap” method using a standard utility knife or a plastic scoring tool against a straight edge.
• For 1/4″ to 3/8″: Attempting to score and snap will shatter the sheet. You must use a table saw or circular saw fitted with a specialized carbide-tipped blade (ideally 60 to 80 teeth) to prevent chipping and melting.
• For 1/2″ to 1″: These industrial thicknesses require heavy-duty machinery. Cutting creates extreme friction heat; without professional CNC routers or laser cutters operating at calibrated feed rates with cooling systems, the plastic will literally weld itself back together during the cut.

2. Application Type

Different projects demand different levels of strength:

• Protective Barrier or Sneeze Guard: Go with 1/4″
• Retail Display Case: 1/4″ or 1″
• Art Frame or Poster Cover: 1/8″ is perfect

3. Weather and UV Exposure

For outdoor use, thicker sheets with UV resistance are ideal. Look for UV-filtering plexiglass if sun exposure is prolonged.

4. Mounting and Framing

Ensure the supporting frame or hardware can handle the weight and thickness of the plexiglass. Thicker acrylic requires special fasteners and supports.

Framing Rules: Factoring in Thermal Expansion by Thickness

Unlike glass, acrylic expands and contracts with temperature fluctuations. If you install a sheet too tightly into a frame without a clearance buffer, it will bow, warp, or crack.

• The Rule of Thumb: Always allow 1/16″ of expansion clearance per linear foot of material inside your frame or channel.
• Thickness Factor: Thicker sheets (1/4″ and up) are more rigid and will exert immense pressure on a frame if they expand without proper clearance, potentially damaging the surrounding structure. If installing a 1/4″ sheet as a storm window insert, ensure your mounting channels are deep enough to accommodate this movement.

5. Safety Requirements

Use thicker and impact-resistant plexiglass for safety glazing, machinery barriers, or environments prone to vandalism or breakage.

Acrylic Sheet Types – Extruded vs. Cast

While thickness determines strength, the manufacturing type also affects performance:

• Cast Acrylic Sheets: Stronger, more impact-resistant, and optically superior, ideal for thicker options like 1″.
• Extruded Acrylic Sheets: Cost-effective and lightweight, commonly used in 1/8″ and 1/4″ applications.

Always check if your sheet is cast or extruded before making cuts or installations.

Thickness vs. Material: Plexiglass (Acrylic) vs. Polycarbonate (Lexan)

A common mistake is assuming that a specific thickness of Plexiglass provides the same security as the same thickness of Polycarbonate.

If your primary goal is security or unbreakable impact resistance, polycarbonate is roughly 250 times stronger than glass, while standard plexiglass is about 10 to 17 times stronger.

• If you need a security barrier, a 1/8″ sheet of Polycarbonate offers similar impact resistance to a 1/2″ sheet of standard Plexiglass.
• However, Plexiglass wins significantly on scratch resistance and edge clarity. If you choose 1/4″ or thicker Plexiglass, you get beautiful, crystal-clear polished edges that won’t yellow over time, whereas polycarbonate edges remain dull and industrial.

Where to Buy Plexiglass by Thickness

You can find 1/8″, 3/16″, 1/4″, 1/2″ and 3/4″ plexiglass sheets in:

• Home improvement stores
• Local plastic suppliers
• Online retailers like Fab Glass and Mirror

Always ensure that you select cut-to-size options for custom needs. For large-scale projects or professional applications, ordering directly from a manufacturer ensures better pricing, quality, and variety.

Matching Plexiglass Thickness to Your Needs

The right plexiglass thickness is not one-size-fits-all, it depends on usage, safety, size, and environmental exposure. If you’re unsure:

• Start with 1/8″ for lightweight and decorative projects.
• Choose 1/4″ for protective, structural, or moderate-use cases.
• Go for 3/4″ only when you need robust support or high-impact resistance.

Always consider sheet size, framing support, and intended use when deciding what thickness of plexiglass you need.

Optimize Your Plexiglass Selection Today

Whether you are creating home decor, retail displays, or protective barriers, knowing the difference between 1/8″, 1/4″, and 1″ plexiglass can save you time, money, and effort. Explore premium-quality clear, frosted, and colored plexiglass sheets in all standard and custom thicknesses at Fab Glass and Mirror, your trusted source for durable acrylic solutions.
